CUTTING DIES

Die is a tool that shapes work pieces with desired tolerance, short time and low manpower. Razor Wire Production Line has a special die type for producing multiple razor wires at the same time. That is the biggest advantage of the machinery compared to the opponents in other countries.

CUTTING DIES | ADVANTAGES

  • High amount of production (as numbers)
  • Easy to duplicate the production with the same dimensions
  • Low manpower needed
  • Exact production dimensions
  • Producibility of little workpieces that can not be produced with other methods

CUTTING DIES | TYPES

Cutting can be made in different razor blade types. The dies are designed according to the customer request. The produced dies are easily assembled to the cutting machines. These types of razor wire change according to the place to be used. Some standard razor wire models are used in the following locations:

  • RTO-10 Type
    Especially the industrial and mining enterprises, apartment gardens are used in border areas.
  • RTO-12 Type
    Especially for high-protected private buildings and cottages.
  • RTO-30 Type
    This has a deterrent effect on the person who is trying to climb. Seriously cutting ensues on the person who tries to climb.
  • CBT-65 Type
    It is widely used in wars as a barrier for protection and defense.

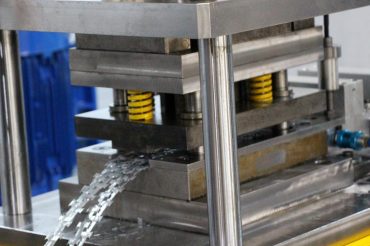

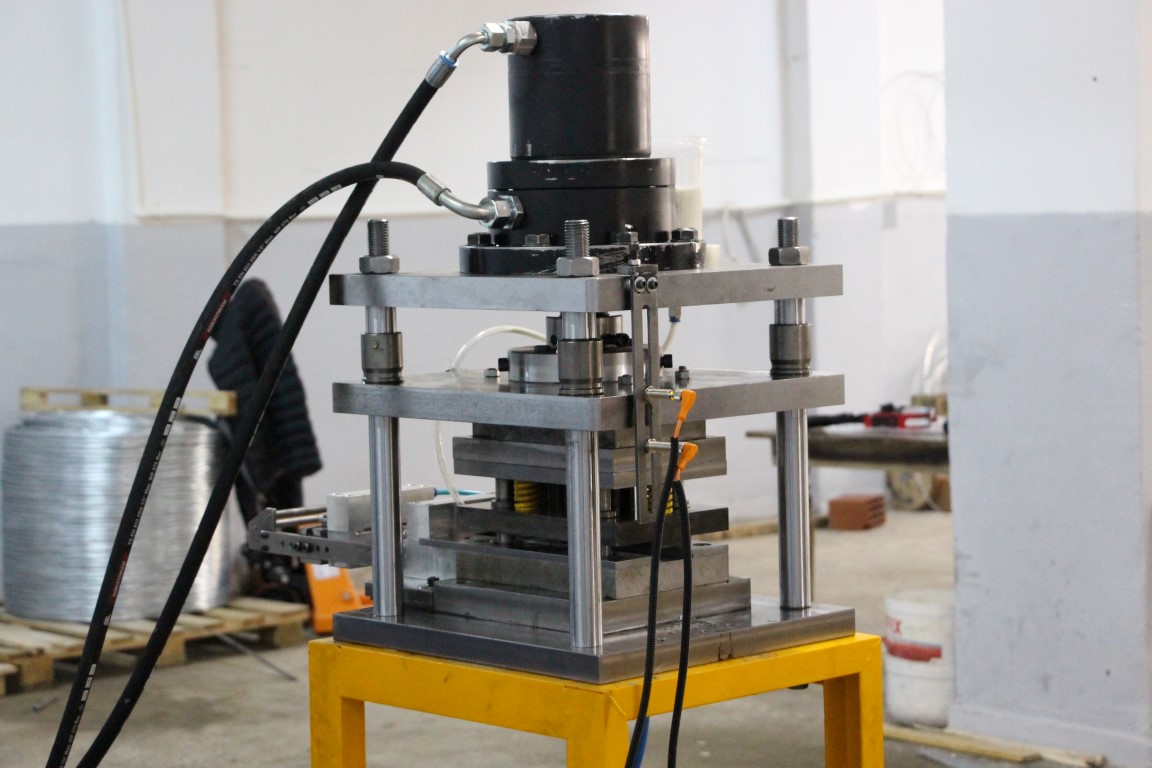

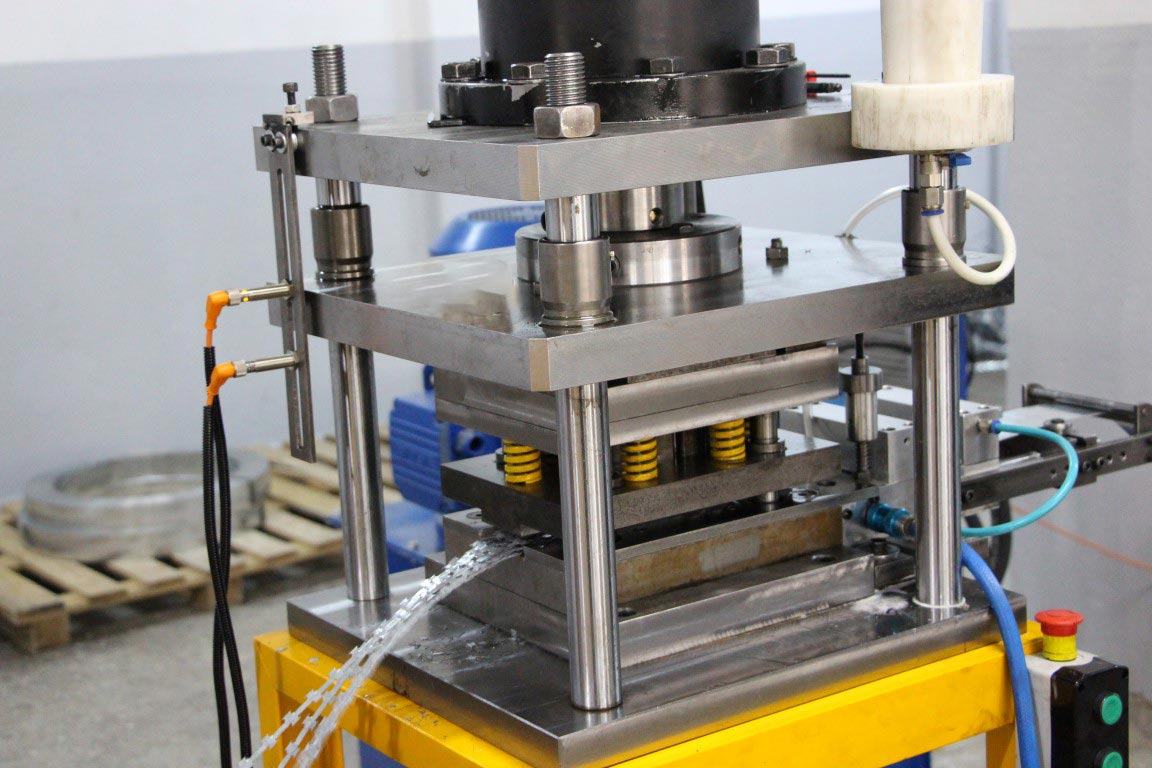

CUTTING DIES | PHOTOS

CUTTING DIES | TECHNICALITY

Below are the measurements of some of the types of razor wire:



Outside Diameter No. Of Loops Standard Length per Coil Type Notes
450 mm 33 8M CBT-65 Single Coil
500 mm 41 10M CBT-65 Single Coil
600 mm 86 14M BTO-10,15,22 Cross Type
700 mm 72 12M BTO-10,15,22 Cross Type

Standard Measures of Different Razor Wire Types:



Refence Number Thickness (mm) Wire Diameter (mm) Barb Length (mm) Barb Width (mm) Barb Spacing (mm)
RTO-10 0,5 ± 0.05 2.5 ± 0.1 10 ± 1 13 ± 1 25 ± 1
RTO-12 0,5 ± 0.05 2.5 ± 0.1 12 ± 1 15 ± 1 25 ± 1
RTO-18 0,5 ± 0.05 2.5 ± 0.1 18 ± 1 15 ± 1 35 ± 1
RTO-22 0,5 ± 0.05 2.5 ± 0.1 22 ± 1 15 ± 1 36 ± 1
RTO-28 0,5 ± 0.05 2.5 28 15 46 ± 1
RTO-30 0,5 ± 0.05 2.5 30 18 46 ± 1
CBT-65 0,5 ± 0.05 2.5 ± 0.1 65 ± 2 21 ± 1 101 ± 1



Used Measures of Some Razor Wire Types

* Technical details is subject to change with the customer request
